Liquid Cooled GPU Workstations for AI
Closed-loop cooling for silent, superior performance.

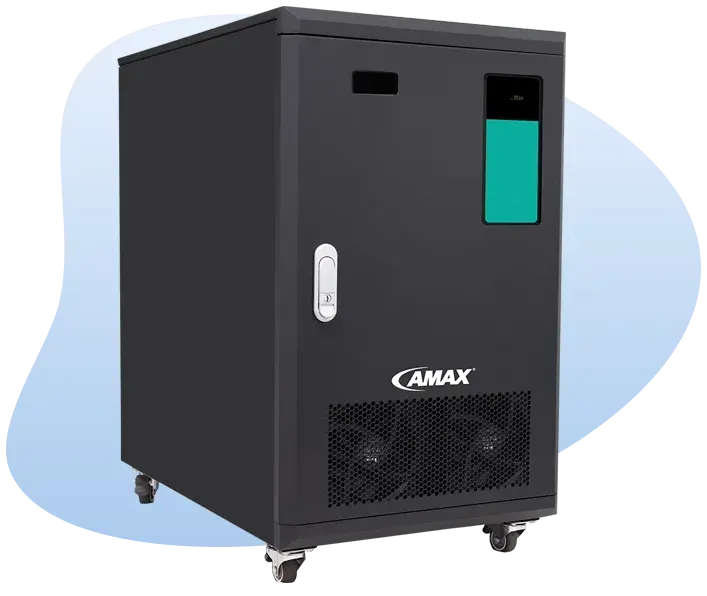

LiquidMax™ LX-5a
The LiquidMax™ LX-5a offers a sleek, liquid cooled, ultra-quiet GPU workstation designed for high-performance AI and deep learning applications.
Energy Savings
Our advanced cooling system maximizes efficiency and minimizes energy consumption during demanding workloads.
Liquid Cooling
Liquid cooling technology keeps vibration and noise levels low (55dB to 59dB at full load).
Custom Design
The custom chassis and thermal design allows for flexible deployment and across any office enviornment.
Intelligent LCD Panel
Continuously monitors critical temperatures to ensure peak operation under heavy workloads.

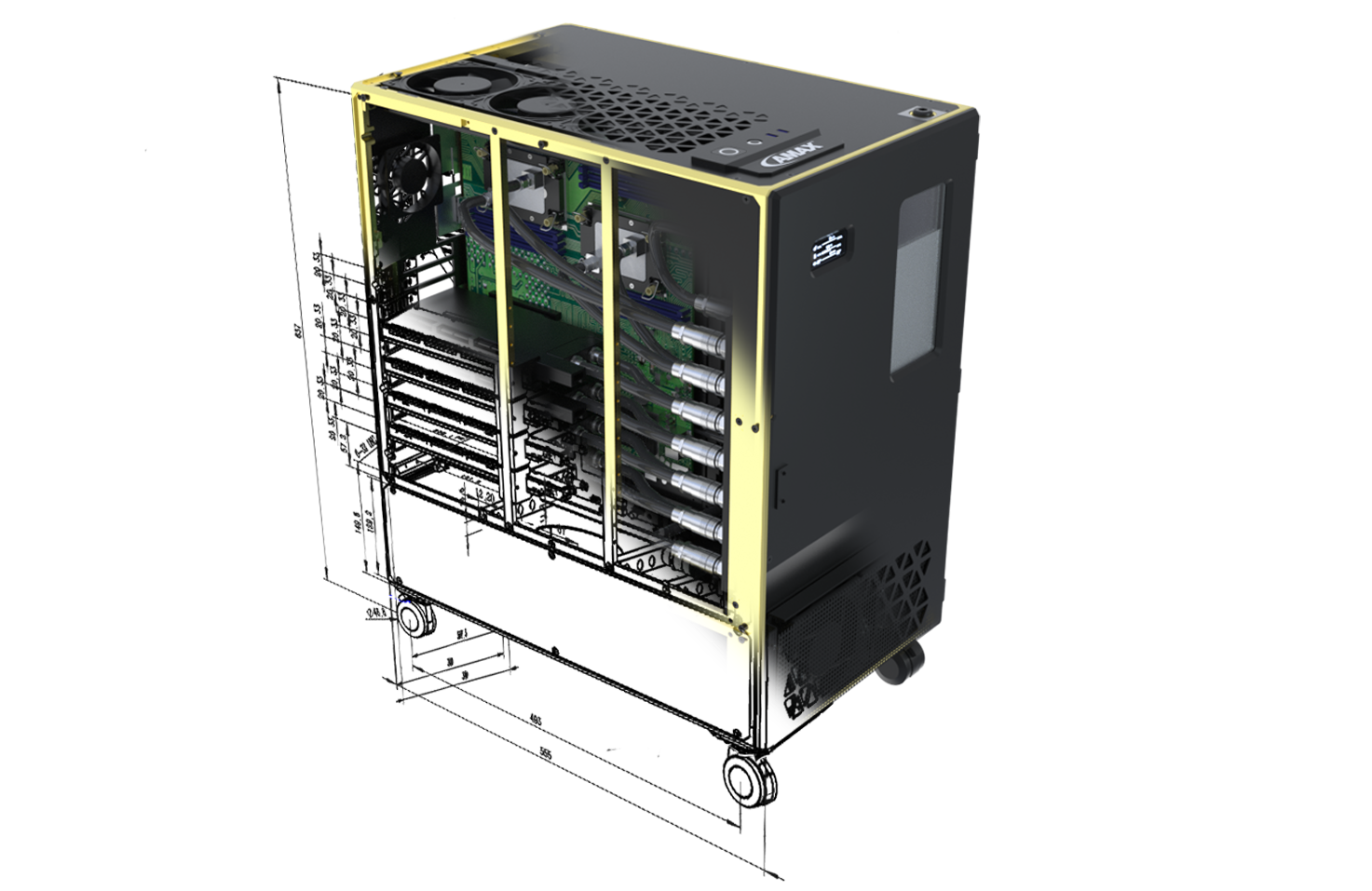

From Design to Manufacturing
Our workstations are engineered with industrial-grade liquid cooling and our custom cold plate technology, ensuring end-to-end precision and efficiency. This approach guarantees peak performance and superior quality in every unit.

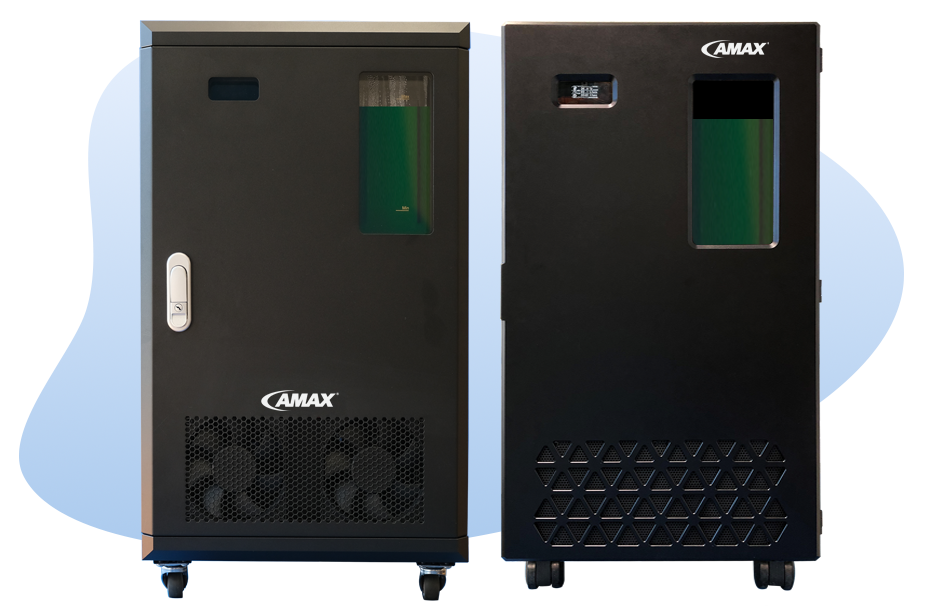

LiquidMax™ LX-5a
Liquid Cooled, Ultra-Quiet Workstation for AI and Deep Learning
- Closed loop liquid cooling design
- Dual 4th Gen Intel® Xeon® Scalable series processors
- Supports 4 liquid cooled GPU cards
- 8 x 3.5 “/ 2.5” SATA / SAS (including 6 x NVMe U.2) hot swappable hard drives
- Rich I/O scalability with IPMI
- 12.1 PFLOPS
LiquidMax™ LX-5a
The increasing use of AI in telecommunications requires more powerful edge solutions. AMAX designs complete systems with advanced GPUs and higher core counts to handle these expanding AI tasks efficiently. These solutions enhance data processing and support scalable growth in the telecommunications industry.
| Component | Detail |
|---|---|
| Processor | Dual 4th Gen Intel® Xeon® Scalable series processors Recommend 6458Q, 8470Q Each supports up to 60 cores cTDP up to 350W |
| Memory | 16 x DDR5 DIMM slots Up to 1TB ECC 4800MT/s DDR5 RDIMM |
| GPU | Supports 4x liquid-cooled GPU (H100/L40/L40S) |
| Network Connectivity | 2 x 10GbE RJ45 |
| Storage | 8 x 3.5”/2.5” SATA/SAS (including 6 x NVMe U.2) hot swappable drives 2 x PCIe 4.0 NVMe M.2 (2280/22110) | Expansion Slots | 6 x PCIe 5.0 x16 slots, 1 x PCIe 5.0 x8 slot |
| Power Supply | 2 x 2000W Power Supply |
Engineering Expertise
Our team of thermal, electrical, mechanical, and networking engineers are skilled in designing solutions designed to your specific requirements.
Solution Architects
AMAX's solution architects optimize IT configurations for performance, scalability, and industry-specific reliability.
Networking
AMAX designs custom networking topologies to enhance connectivity and performance in AI and HPC environments.
Thermal Management
AMAX implements innovative cooling technologies that boost performance and efficiency in dense computing setups.
Compute Optimization
AMAX ensures maximum performance through benchmarking and testing, aligning hardware and software for AI workloads.

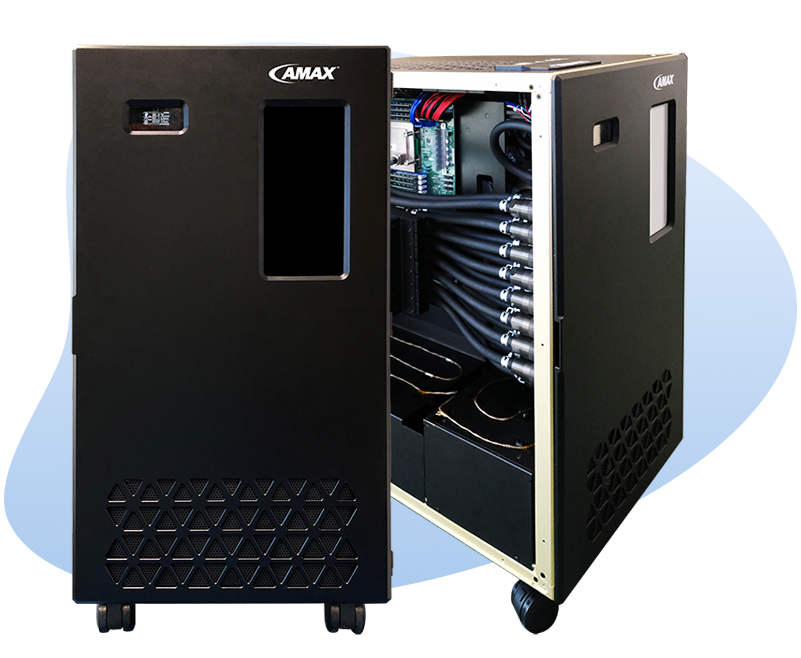

LiquidMax LA-2
- 7x NVIDIA DATA CENTER GPU with Liquid Cooling Technology
- Up to 64 processor cores and 128 threads
- Up to 560GB GPU Memory
- Ultra Quiet - Noise level of the entire workstation at full load is 59dB

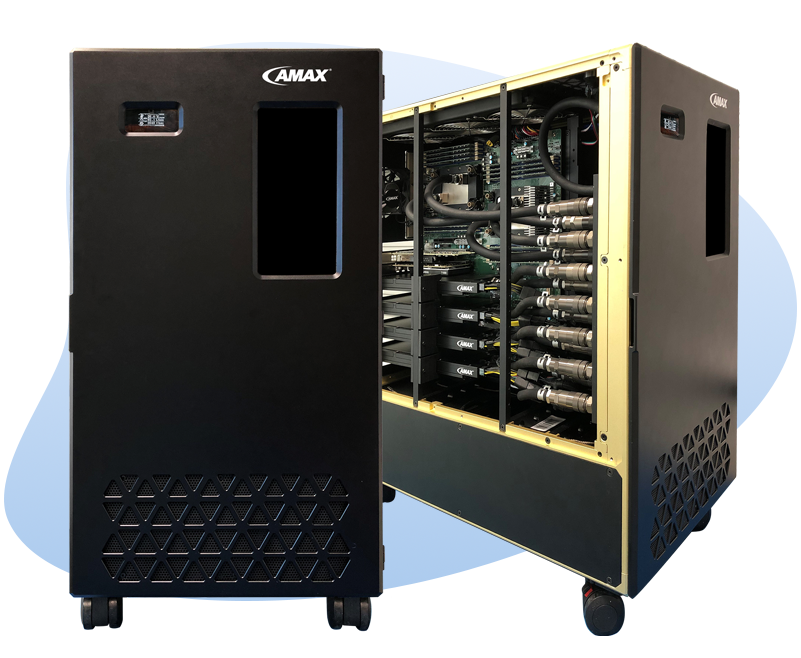

LiquidMax LX-2
- 4x NVIDIA DATA CENTER GPU with Liquid Cooling Technology
- Up to 80 processor cores and 160 threads
- Up to 320GB GPU Memory
- Ultra Quiet Dual Socket - Noise level of the entire workstation at full load is 55dB
