8U Dual Socket AMD EPYC 9004/9005 Series Processors 8x AMD Instinct™
MI325X Accelerators Server

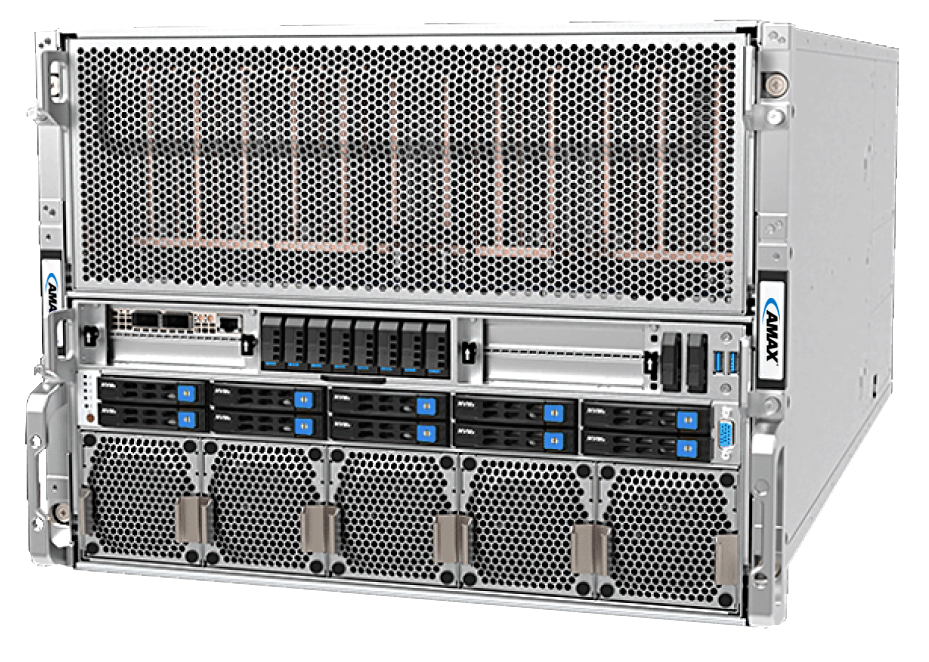

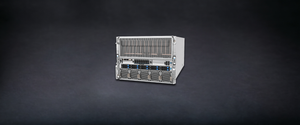

AceleMax® AXG-828AM
- Industry-standard OCP accelerator module (OAM) with 8 GPUs
interconnected on an AMD universal base board (UBB 2.0) - Industry-leading 2 TB of HBM3E memory in a single server node
- 400-Gbps networking dedicated to each GPU for large-scale AI
clusters - 2-socket design supports 4th and 5th Gen AMD EPYC™ Processors
- Up to 24 DIMMs for up to 9 TB of DDR5-6000 memory (with 5th
Gen AMD EPYC processors) - Flexible PCIe 5.0 options for I/O and networking
Specifications
| Specifications | Details |
|---|---|
| Form Factor | • 8U Rackmount |
| Processor Support | • Dual SP5 sockets for AMD EPYC™ 9004 Series processors up to 400W or AMD EPYC 9005 Series processors up to 500W (two CPUs required) • Up to 128 cores (EPYC 9004 Series) or 192 cores (EPYC 9005 Series) per CPU |
| GPU Support | • AMD Instinct MI325X Platform with 8 MI325X OAM GPUs |
| Memory Slots & Capacity | • 12-channel DDR5 memory support • 24 DIMM slots for up to 6 TB ECC DDR5-4800 RDIMM (with EPYC 9004 Series) • 24 DIMM slots for up to 9 TB ECC DDR5-6000 RDIMM (with EPYC 9004 Series) |
| On-Board Devices | • System on Chip • Hardware Root of Trust • IPMI 2.0 with virtual-media-over-LAN and KVM-over-LAN support • ASPEED AST2600 BMC graphics |
| Expansion Slots | • 8 PCIe 5.0 x16 low-profile slots connected to GPU via PCIe switch • 2 PCIe 5.0 x16 full-height full-length slots • Optional 2 PCIe 5.0 x16 slots via expansion kit |
| Storage | • 12 PCIe 5.0 x4 NVMe U.2 drives • 4 PCIe 5.0 x4 NVMe U.2 drives (optional) • 1 M.2 NVMe/SATAx boot drive • 2 hot-swap 2.5" SATA drives |
| I/O Ports | • 1 RJ45 Dedicated IPMI LAN port • 2 USB 3.0 Ports (rear) • 1 VGA Connector |
| BIOS | • AMI Code Base 256 MB (32 MB) SPI EEPROM |
| System Management | • Built-in server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port • Redfish APIs • AMAX Composer • AMAX Server Manager (ASM) and AMAX Update Manager (AUM) |
| System Cooling | • Dual-zone cooling optimized for performance and operational costs with 5 front and 5 rear counter-rotating fans with optimal speed control |
| Power Supplies | • 6x or 8x 3000W N+N redundant Titanium-Level power supplies |
