4U UP AMD EPYC™ PCIe GPU Server with up to 4 PCIe GPUs

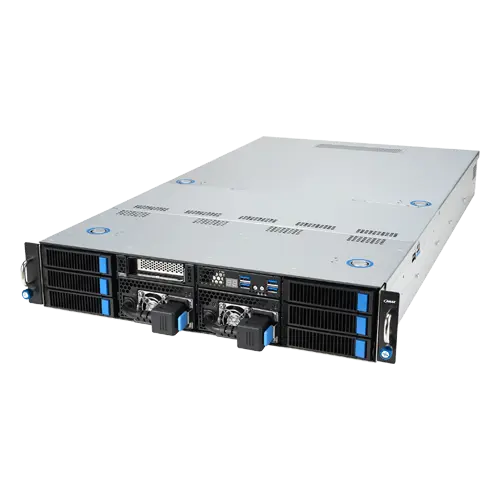

AceleMax® AXG-214A
- AMD EPYC™ 9005, 9004 series with AMD 3D
V- Cache technology - PCIe Gen5.0 Ready
- AI and HPC workloads ready
- Comprehensive cooling solutions
- Enhanced IT-infrastructure management
Specifications
| Specifications | |
|---|---|
| Processor Support | • 1 x Socket SP5 (LGA 6096) • AMD EPYC™ 9005, 9004 series (up to 400W) • 5th and 4th Generation AMD EPYC Processors with AMD 3D V-Cache technology |
| Memory | • Total Slots: 12 (12-channel per CPU, 12 DIMM per CPU) • Capacity: Maximum up to 3TB per CPU socket • Memory Type: DDR5 4800/4400 RDIMM / 3DS RDIMM • Memory Size: 64GB, 32GB, 16GB RDIMM, 256GB, 128GB 3DS RDIMM |
| Expansion Slots | • Total PCI/PCI-X/PCI-E/PIKE Slots: 12 Slot Type: Rear - 4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or - 8 x PCIe x16 slots (Gen5 x16 link, FH,FL) for single-slot GPU cards - 1 x PCIe x16 slot (Gen5 x16 link, FH, HL) - 1 x PCIe x16 slot (Gen5 x16/x8 link, FH, HL) or OCP socket option - 1 x PCIe x8 slot (Gen5 x0/x8 link, LP, HL) Front: - 1x PCIe x8 slot (Gen5 x8 link, LP, HL) Only for SKU1 |
| Disk Controller | • SATA Controller: 6 x SATA 6Gb/s ports SAS Controller: Optional Kits: - AMAX 3008 8-port SAS 12Gb/s HBA card - AMAX 3108 8-port SAS HW 12Gb/s RAID card - Broadcom MegaRAID 9540-8i - Broadcom MegaRAID 9560-16i |
| Storage Bays | • I = internal: 2 x 2.5” & 4 x 3.5” Hot-swap Storage Bays • A or S will be hot-swappable: SKU1: - 2 x 2.5” SATA/SAS*/NVMe + - 2 x 3.5” SATA/SAS*/NVMe + 2 x 3.5” SATA/SAS* SKU2: Build to order - 2 x 2.5” SATA/SAS*/NVMe + - 4 x 3.5” SATA/SAS*/NVMe (Occupy 1 x PCIe x8 link) *SAS support required a HBA/RAID card. **For SKU1: Additional 2 x NVMe bays require a RAID card. |
| Networking | LAN: • 2 x Gigabit LAN ports (Intel I350 Controller) • 1 x Management Port |
| Graphic | • VGA: Aspeed AST2600 64MB |
| Front I/O Ports | • 4 x USB 3.2 Gen1 ports |
| Rear I/O | • 2 x USB 3.2 Gen1 ports • 2 x Gigabit LAN ports (RJ45) • 1 x Management port (RJ45) • 1 x VGA port |
| Switch/LED | Front: • 1 x Power Button/LED • 1 x Location Button/LED • 1 x Message LED • 1 x Q-Code/Port 80 LED • 2 x LAN LED Rear: • 1 x Power Button/LED • 1 x Location LED • 1 x Message LED |
| OS Support | • Windows Server • RedHat® Enterprise Linux • SuSE® Linux Enterprise Server • CentOS • Ubuntu • VMware |
| Management Solution | • Software: AMAX Control Center (Classic) • Out of Band Remote Management: On-Board AB11-iKVM |
| Power Supply (following different configuration by region) | • 1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply |
| Environment | • Operation temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operation temperature: -40°C ~ 70°C (-40°F ~ 140°F) • Non-operation humidity: 20% ~ 90% (Non condensing) |
| Dimensions | • 800mm x 439.5mm x 88.9mm (2U) • 31.5” x 17.3” x 3.5” |
