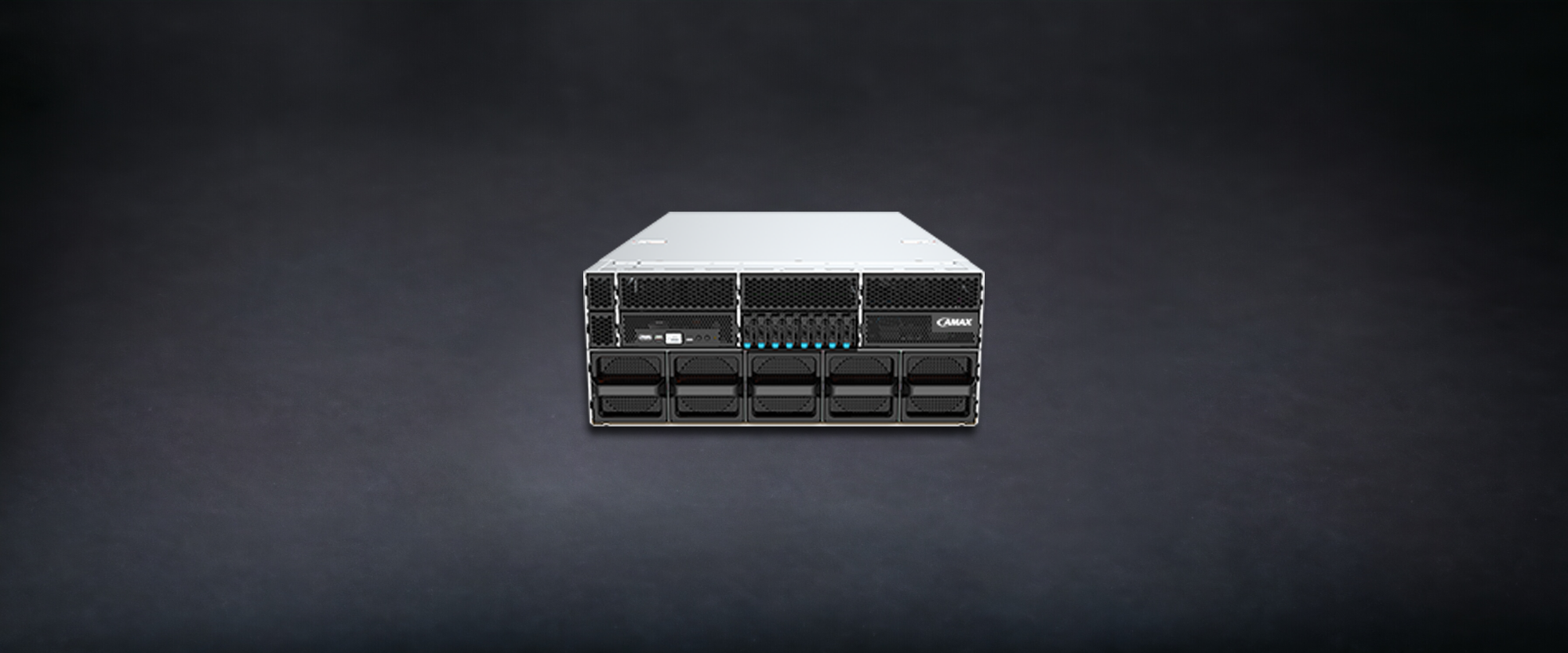

4U DP AMD EPYC™ 9005 GPU Server with up to 8 PCIe GPUs.
AceleMax® AXG-428AG
- MGX™ 4U AI Server, up to 8 x dual-slot GPUs
(NVIDIA L40S, H200 NVL) - NVIDIA® NVLink® Bridge support
- 2-Socket AMD EPYC™ 9005 Series processors,
up to 5GHz - Up to 5 x PCIe5.0 x16 slot for NICs
- Up to 8 x E1.S SSD
Specifications
| Category | Details |
|---|---|
| Chassis Form Factor | • MGX 4U |
| Number of Processors | • 2 |
| Processor Type | • AMD 5th Gen AMD EPYC™ Server Processor |
| Max. TDP Support | • Up to 400W with 2U” standard heatsink |
| GPU Support | • Up to 8pcs Double Width GPUs (up to 600W) • Or 16pcs Single Width GPUs (up to 300W) |
| Total Memory Slots | • 32 |
| Memory Type | • 1DPC: DDR5 RDIMM up to 5200 MT/s • 2DPC: DDR5 RDIMM up to 4400 MT/s |
| DIMM Capacity (GB per DIMM) | • 32GB, 64GB, 128GB |
| Expansion Slots | • 8 x PCIe 5.0 x16 (DS FHFL): For H200NVL or B100 NVL with 4-way Nvlink bridge. Or switch to 16 x PCIe 5.0 x8 (Single width FHFL): For 150W–180W accelerating card (PCIe Switch board): 8pcs x16 slot & 8pcs x8 slots interlace • 5 x PCIe 5.0 x16 (SS FHFL): For BF3 & CX-7 card |
| Storage Bays | • 8 x E1.S NVMe backplane (4 pcs E1.S supported from BF3) |
| Onboard Storage Bays | • 2 x M.2 22110 / 2280 PCIe x4 |
| Management | • DC-SCI BMC Management (ASpeed / AST2600 as BMC hardware solution) |
| Security | • TPM 2.0 module (Infineon SLB 9670) • PROT (Platform Root of Trust) 4.0 module (ASpeed / AST1060 as hardware solution) |
| Networking Interface | • 1 x IPMI RJ-45 • No On-board LAN, supports share-LAN through NC-SI |
| Front I/O Ports | • 1 x Mini Display Port • 1 x USB 3.2 Gen 1 (5Gbps) • 1 x Micro-USB (For UART Debug) • 1 x Power Button • 1 x UID button with LED • 1 x Status LED |
| OS Support | • Red Hat Enterprise Linux 9.2 or later • Ubuntu 22.04 LTS |
| Power Supply | • 3+1 x 2700W Titanium CRPS |
| Operating Environment | • Ambient operating temperature range: 5°C to +35°C • Ambient non-operating temperature: -40°C to +68°C • Operating relative humidity: 10% to 90% (non-condensing) • Non-operating relative humidity: up to 93% (non-condensing) |
| Conformity Country List | • North America: UL (Safety) / FCC (EMC) • EU: CB (Safety) / CE (EMC) • Taiwan: BSMI |
| Chassis Dimension | • 440mm (W) x 176mm (H) x 800mm (D) • 17.3” (W) x 6.9” (H) x 31.5” (D) |
