5U Dual Socket AMD EPYC™ 9005/9004 Series Processors Server with
10 PCIe GPUs via PLX Switch.

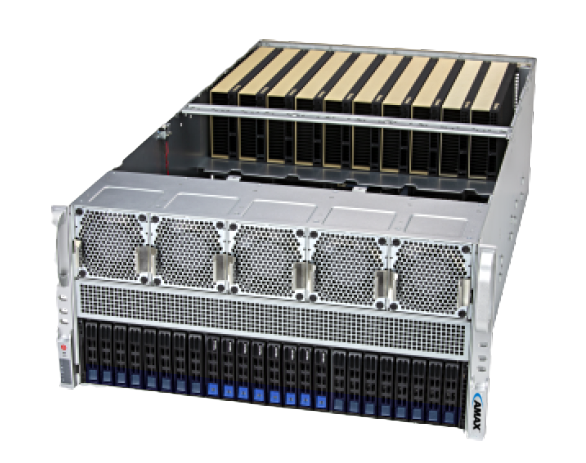

AceleMax® AXG-5210AE
- Dual processor(s) AMD EPYC™ 9005 Series Processors up to
500W with air cooling - Support for up to 10 double-width PCIe GPU accelerator cards
- Up to 24 DIMMs supporting up to 9TB DDR5-6000 in 1DPC
- Flexible networking with up to AIOM slots
- Up to 13 PCIe 5.0 x16 FHFL slots
- Up to 2 front hot-swap 2.5” SATA + 8 front hot-swap 2.5”
NVMe drive bays
Specifications
| Specifications | |
|---|---|
| Form Factor | • 5U Rackmount • Enclosure: 437 x 222.5 x 737mm (17.2” x 8.75” x 29”) • Package: 720 x 440 x 1080mm (28.34” x 17.32” x 42.51”) |
| Processor | • Dual processor(s) • AMD EPYC™ 9005/9004 Series Processors • Up to 192C/384T |
| GPU | • Max GPU Count: Up to 10 double-width GPUs • Supported GPU: NVIDIA PCIe: H100 NVL, H200 NVL (141GB), L40S • CPU-GPU Interconnect: PCIe 5.0 x16 Switch Dual-Root • GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional) |
| System Memory | • Slot Count: 24 DIMM slots • Max Memory (1DPC): Up to 9TB 6000MT/s ECC DDR5 RDIMM/LRDIMM |
| Drive Bays Configuration | Default: Total 10 bays • 2 front hot-swap 2.5” SATA drive bays • 8 front hot-swap 2.5” NVMe drive bays • M.2: 1 M.2 PCIe 3.0 x4 NVMe slot (M-key) |
| Expansion Slots | Default: • 11 PCIe 5.0 x16 FHFL slots Option A: • 13 PCIe 5.0 x16 FHFL slots |
| On-Board Devices | • SATA: SATA (6Gbps) • Chipset: System on Chip • Network Connectivity: 2 RJ45 10GbE |
| Input / Output | • LAN: • 1 RJ45 1 GbE Dedicated BMC LAN port • 2 RJ45 10 GBASE-T LAN ports • USB: 2 ports (rear) • Video: 1 VGA port |
| System Cooling | • Fans: 10 heavy-duty fans with optimal fan speed control |
| Power Supply | • 4x 2700W Redundant (3 + 1) Titanium Level (96%) power supplies |
| System BIOS | • BIOS Type: AMI 64MB SPI Flash EEPROM |
| Management | • AMAX Cloud Composer • AMAX Server Manager (ASM) • AMAX Update Manager (AUM) • AMAX Diagnostics Offline (ADO) • AMAX Thin-Agent Service (AAS) • AMAX Server Automation Assistant (AAA) New! |
| PC Health Monitoring | CPU: • Monitors for CPU Cores, Chipset Voltages, Memory • 7 +1 Phase-switching voltage regulator FAN: Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors Temperature: • Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
| Operating Environment | • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
