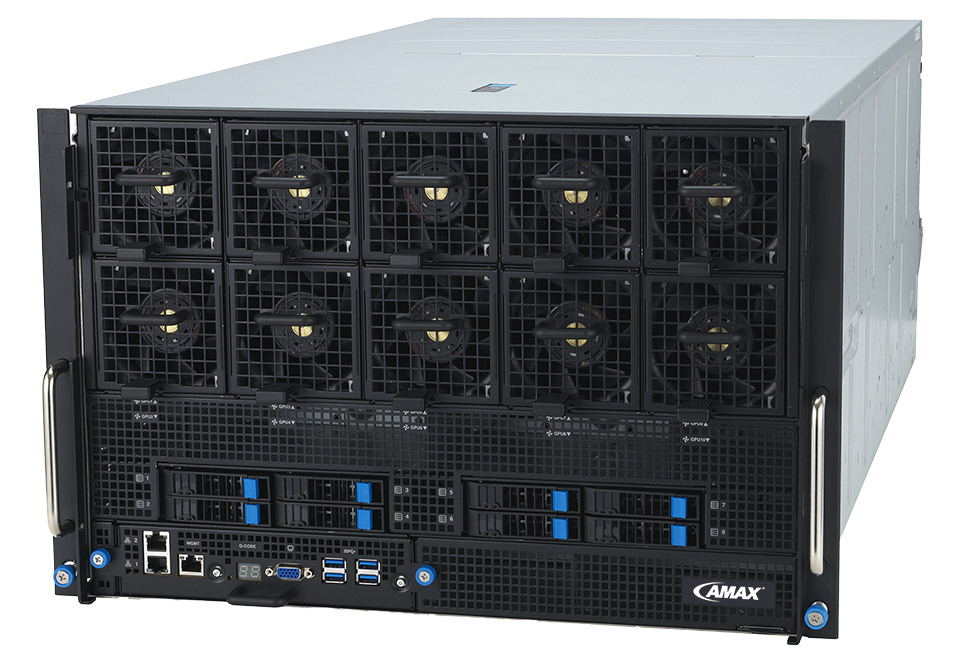

7U DP AMD EPYC CPU WITH 8x NVIDIA H100/H200 GPU Server
AceleMax® AXG-728AS
- AMD EPYC 9005, 9004 Series Processors
- PCIe 5.0 Ready
- Powerful Performance
- Enhanced IT-infrastructure Management
Specifications
| Specifications | |
|---|---|
| Processor Support | • Dual Socket • AMD EPYC 9005, 9004 Series Processors |
| Memory | • Total Slots: 24 (12 channel per CPU, 12 DIMM per CPU) • Capacity: Maximum up to 3TB per CPU socket • Memory Type: DDR5 4800 RDIMM/RDIMM 3DS • Memory Size: 128GB, 96GB, 64GB, 32GB, 16GB RDIMM, 128GB RDIMM 3DS |
| Expansion Slots | • Total PCI/PCI-X/PCI-E/PIKE Slots: 12 Slot Type: [PCIe Switch directly] • 8 x PCIe Gen5 x16 link (HHHL) [CPU directly]) • 1 x PCIe Gen5 x16 link (FHHL)* + 1 x PCIe Gen5 x16 link (FHHL)* • 1 x PCIe Gen5 x8 link (FHHL) + 1 x PCIe Gen5 x8 link (FHHL) *Support PCIe x16 link up to 150W • M.2: 2 x M.2 Gen5x4 (CPU1) |
| Disk Controller | • SATA/NVMe/SAS Controller (Rear 2 NVMe) Optional Kits: • Broadcom MegaRAID 9560-16i • Broadcom RAID CARD 9540-8i |
| Storage Bays | • 1 = Internal: 10 x 2.5” hot-swap drive bays (8 NVMe, 2 NVMe/SATA/SAS*) • A or S will be hot-swappable: [PCIe Switch directly] • Front: 8 NVMe [CPU directly] • Rear: 2 NVMe (CPU1) / SATA* / SAS* (*SATA/SAS support requires an HBA/RAID card) |
| Networking | • LAN: • 2 x 10 Gigabit LAN ports (Intel X710-AT2 Controller) • 1 x Management Port |
| Graphic | • VGA: Aspeed AST2600 64MB |
| Front I/O Ports | • 4 x USB3.2 Gen1 ports • 1 x VGA port • 2 x 10Gb RJ45 LAN module (Intel-x710 Based) • 1 x Mgmt LAN • 1 x locate button • 1 x power button |
| Rear I/O | • 1 x locate button • 1 x power button |
| Switch/LED | Front: • 1 x Power Button/LED • 1 x Location Button/LED • 1 x Message LED • 1 x Q-Code/Port 80 LED Rear: • 1 x Location LED • 1 x Power Button/LED |
| OS Support | • Windows Server • RedHat® Enterprise Linux • Rocky • Ubuntu • VMware |
| Management Solution | • Software: AMAX Control Center • Out of Band Remote Management: On-Board AB11-iKVM |
| Power Supply (following different configuration by region) | • 4+2 or 3+3 3000W 80 PLUS Titanium Power Supply |
| Environment | • Operation temperature: 10°C ~ 35°C • Non-operation temperature: -40°C ~ 70°C • Non-operation humidity: 20% ~ 90% (Non-condensing) |
| Dimensions | • 885mm x 447mm x 306.65mm • 34.8” x 17.6” x 12.07” |
