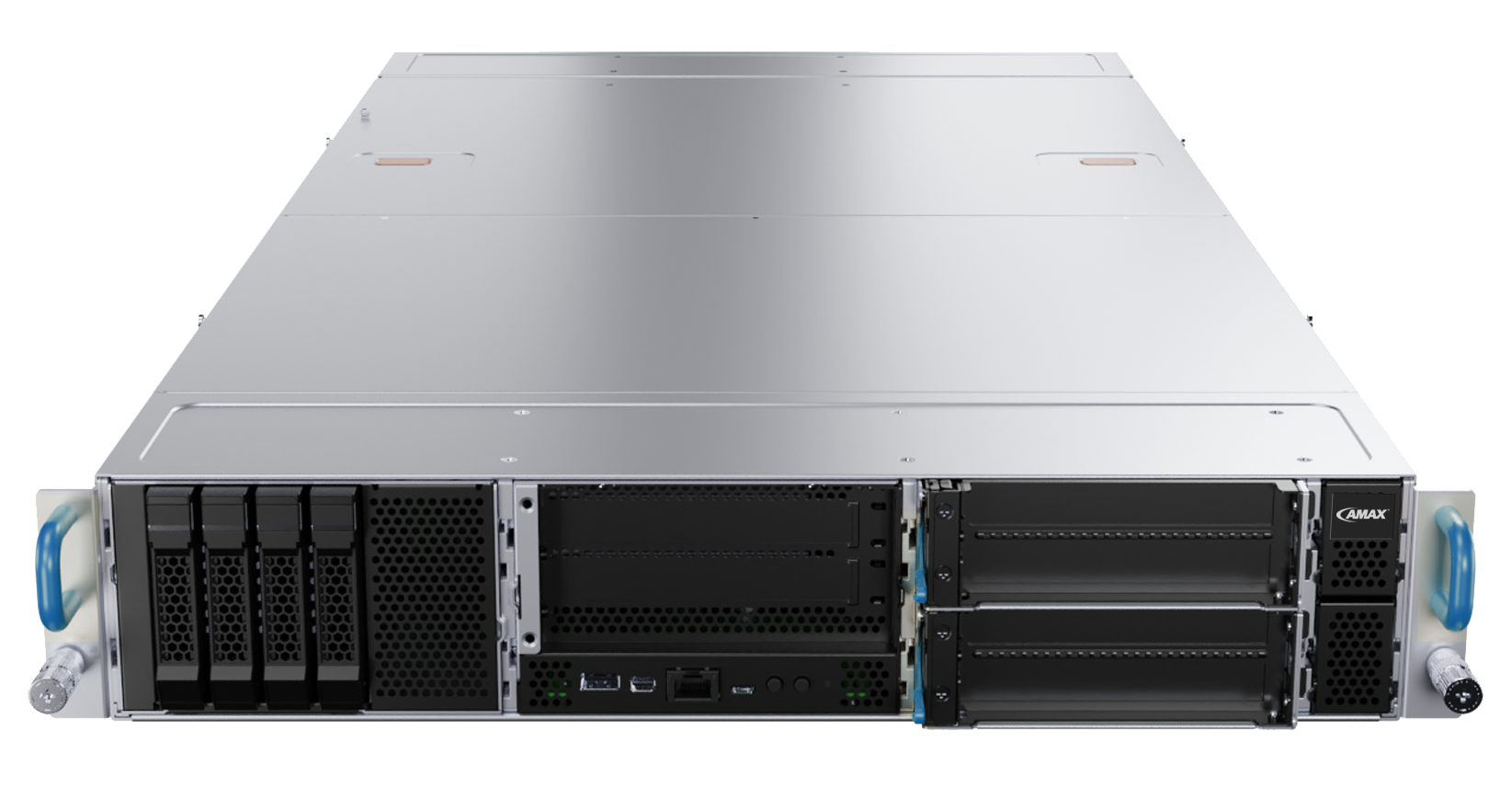

2U NVIDIA GH200 Grace Hopper Superchip MGX Server.

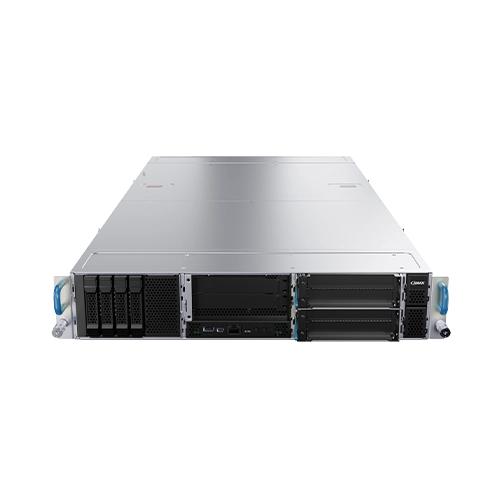

AceleMax® AXG-AR222
- Equipped with Nvidia GH200 Grace Hopper Superchip, GH200
HBM3 96GB & HBM3e 144GB up to 1000W TDP - Coherent memory between CPU and GPU with NVLink®- C2C
interconnect - Up to 480GB of LPDDR5X memory with error-correction code
(ECC) - Optimized for memory intensive inference and HPC performance
- Support up to 4x U.2 NVMe SSDs
Specifications
| Category | Details |
|---|---|
| Form Factor | • MGX 2U |
| Processor | • Number of Processors: 1 • Processor Type: NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip • Max. TDP Support: 1000W TDP Superchip (Air Cooled) |
| GPU | • NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Air-cooled) |
| Memory | • Total Slots: Onboard Memory • Memory Type: LPDDR5X • DIMM Capacity: Up to 480GB ECC LPDDR5X • Additional GPU Memory: Up to 144GB ECC HBM3 |
| Drive Bays Configuration | • Default: Total 10 bays: – 10 front hot-swap 2.5” PCIe 5.0 x4 NVMe drive bays • M.2: 2 M.2 NVMe slots (M-key) |
| Expansion Slots | • SKU -#1 – 1 x PCIe 5.0 x16 (FHFL, 1RU Type 1 Long, Front right-hand Top side): For ConnectX-7 200G or BlueField3 200G Card – 1 x PCIe 5.0 x16 (FHHL, 2RU Type 1 Short, Front middle side), with Broadcom MegaRAID 9500-16i – 1 x PCIe 5.0 x16 (FHFL, 1RU Type 1 Long, Front right-hand Down side) • SKU -#2 – 1 x PCIe 5.0 x16 (FHFL, 1RU Type 1 Long, Front right-hand Top side): For ConnectX-7 200G or BlueField3 200G Card – 1 x PCIe 5.0 x16 (FHFL, 1RU Type 1 Long, Front right-hand Down side) |
| Storage Bays | • SKU -#1 – Up to 4 x 2.5” PCIe 4.0 NVMe SSD through Broadcom MegaRAID 9500-16i support RAID function • SKU -#2 – 2 x 2.5” PCIe 4.0 NVMe SSD |
| Onboard Storage | • 2 x M.2 PCIe 4.0 NVMe (Onboard; for OS usage) |
| Security | • 1 x TPM 2.0 |
| Networking Interface | • NIC card options |
| Front I/O Ports | • 1 x Mini Display Port • 1 x RJ45 Management Port • 1 x COM Port (Micro USB type-B) • 1 x Reset button • 1 x ID button/LED • 1 x Power button with LED |
| Rear I/O Ports | • n/a |
| OS Support | • Ubuntu 22.04 LTS |
| Power Supply | • 1+1 2000W Titanium CRPS |
| Fans | • 6 x 6056 Fans |
| Operating Environment | • Operating temperature: 5°C to 35°C • Operating humidity: 10%-90% (non-condensing) • Non-operating temperature: -40°C to 70°C • Non-operating humidity: -55%-85% (non-condensing) |
| Chassis Dimension (W x H x D) | • 17.2” x 3.46” x 35.4” / 438mm x 88mm x 900mm |
