Single AMD EPYC™ 9004 (with AMD 3D V-Cache™ Technology) and
97x4 Series Processors.

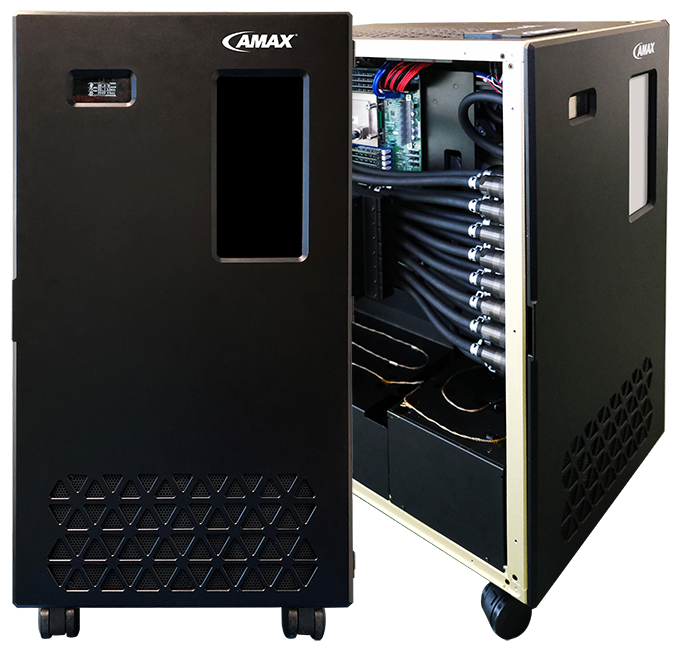

LiquidMax® LA-5a Pro Workstation
Features full liquid cooling for CPU and GPU, supports up to seven FHFL GPUs, and includes six hot-swap bays with M.2 and U.2 options. It is ideal for applications such as AI/ML workloads, image recognition, smart medical solutions, video surveillance, and mobile communication.
- Full liquid cooling CPU+GPU to maximize peak performance 24/7
- 7x PCIE5.0 x16/ 1x PCIE5.0 x8
- 6x hot-swap bays, 1x M.2 and 4x U.2
Specifications
| Category | Specifications |
|---|---|
| Processor Support | • Single AMD EPYC™ 9004 (with AMD 3D V-Cache™ Technology) and 9x74 series processors • Socket SP5 (LGA6096) |
| GPU | • L40s, H100 |
| Chipset | • System on Chip |
| Memory Capacity | • 8 DIMM slots • Up to 2TB ECC DDR5-4800MHz RDIMM/RDIMM-3D |
| Expansion Slots | • 7 x PCIe 5.0 x16 slots • 1 x PCIe 5.0 x8 slot |
| Network Connectivity | • 2 x 10GbE RJ45 |
| I/O ports | • 1 x dedicated IPMI • 1 x VGA port • 2 x USB 3.2 • 1 x COM |
| Storage | • 4 x NVMe U.2 hot swappable drives • 1 x PCIe4.0 NVMe M.2 (2280/22110) |
| System Management | • Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port |
| Operating Properties | • Operation temperature: 5°C - 30°C • Non-operation temperature: 5 to 60°C • Non-operation humidity: 20% - 90% (Non condensing) |
| Chassis | • Tower |
| Power Supply | • Dual 1600W high efficiency power supply |
| System Dimensions (H x W x D) | • 666.3 mm x 380 mm x 585 mm |
