Dual 5th/4th Gen Intel® Xeon® Scalable Series Processors.

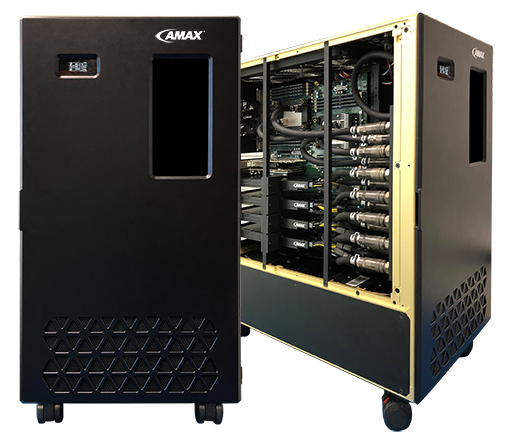

LiquidMax® LX-5a Pro Workstation
The LiquidMax® LX-5a is a high-performance workstation equipped with full liquid cooling and designed for tasks such as large model training and 3D rendering. Here are the key features:
- Full liquid cooling CPU+GPU to maximize peak performance 24/7
- 5 x PCIe Gen5 X16 link, 1 x PCIe Gen5 x8 link
- 6x hot-swap bays, 1x M.2 and 2x U.2
Specifications
| Category | Specifications |
|---|---|
| Processor Support | • Dual 5th/4th Gen Intel® Xeon® Scalable series processors • cTDP up to 350W |
| GPU | • 4x liquid-cooled GPU (H100/L405) |
| Core Logic | • Intel C741 Chipset |
| Memory Capacity | • 16 x DDR5 DIMM (8-channel per CPU, BIDIMM per CPU) • Up to 2TB per CPU socket |
| Expansion Slots | • 6 x PCIe 5.0 x16 slots • 1 x PCIe 5.0 x8 slots |
| Network Connectivity | • 2 x 10GbE LAN ports (RJ45) |
| I/O ports | • 2 x USB 3.2 • 1 x Serial Port • 1 x VGA • 2 x 10GbE LAN ports • 1 x Mgmt Port |
| Storage | • 8 x 3.5"/2.5" SATA/SAS (including 4 x NVMe) hot-swappable drives • 1 x PCIe4.0 NVMe M.2 (2280/22110) |
| Chassis | • Tower |
| Power Supply | • 2 x 1600W power supply |
| System Dimensions (H x W x D) | • 660mm x 380mm x 611mm |
