1U Single Socket AMD EPYC 9005 Series Processor Server.

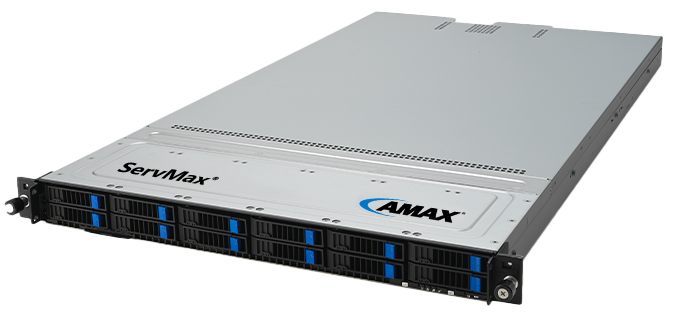

ServMax® A-1112T
- 1 x AMD EPYC 9005 series processor
- 24*DDR5 DIMM up to 5200Mhz
- 2 x M.2 socket support
- 3 x PCIe + 1 x OCP expansion in 1Urack sever
- Internal 4-bay cage for mid bay SKU
Specifications
| Specifications | |
|---|---|
| Processor Support | • 1 x Socket SP5 (LGA 6096) • Supports AMD EPYC™ 9005 series processors or AMD EPYC™ 9004 series processors, up to 360W, with AMD 3D V-Cache technology |
| Memory | Total Slots: • 24 12-channel, 2 DIMM per channel Capacity: • Up to 2,304GB Memory Type: • AMD EPYC™ 9005 series processors • DDR5 5600 RDIMM • 2DPC (1 of 2) up to 5200 • 2DPC (2 of 2, 1R+1R) up to 4400 • 2DPC (2 of 2, 2R+2R) up to 4000 Memory Size: • 96GB, 64GB, 32GB, 16GB RDIMM AMD EPYC™ 9004 series processors: • DDR5 4800 RDIMM • 2DPC (1 of 2) up to 4800 • 2DPC (2 of 2, 1R+1R) up to 4000 • 2DPC (2 of 2, 2R+2R) up to 3600 |
| Expansion Slots | Total Slots: • 3 PCIe Gen5 slots + 1 OCP3.0 Slot Type: • 1 x PCIe x16 slot (Gen5 x16 link, FH, HL) • 1 x PCIe x16 slot (Gen5 x16 link, LP, HL) • 1 x PCIe x16 slot (Gen5 x8 link, LP, HL) • 1 x OCP3.0 socket (Gen5 x16 link) |
| Storage Bays | • Front: 12 x 2.5” Hot-swap Storage Bays (12 x SATA/SAS/ U.2 or U.3 NVMe Devices) Mid storage bays SKU: • Support up to 16 NVMe/SATA • 2 x M.2 socket (Gen4 x4 link or SATA mode, up to 22110 module) |
| Networking | LAN: • 1 x Dual Port Intel I350-AM2 Gigabit LAN controller • 1 x Dedicated Management port (BMC AST2600) |
| Security | • Optional TPM module • Optional PFR module |
| Rear I/O Ports | • 2 x USB 3.2 Gen1 ports • 2 x Gigabit LAN ports (RJ45) • 1 x Management port (RJ45) • 1 x VGA port • 1 x COM port |
| Switch/LED | Front: • 1 x Power Button/LED • 1 x Location Button/LED • 1 x Message LED • 2 x LAN LED Rear: • 1 x Port80 LED (Q-Code) • 1 x Power Switch w/LED • 1 x Location Switch w/LED • 1 x Message LED |
| Management Solution | • Software: AMAX Control Center (in-band) • Out of Band Remote Management: AB11-iKVM (BMC AST2600) |
| Power Supply | (Following different configuration by region): • 1+1 Redundant 1200W/1600W 80 PLUS Platinum Power Supply • 1+1 Redundant 1600W 80 PLUS Titanium Power Supply |
| Environment | • Operating temperature: 10°C ~ 35°C • Non-operating temperature: -40°C ~ 70°C • Non-operating humidity: 20% ~ 90% (Non-condensing) |
| Dimensions | • 842.5mm x 449mm x 43.85mm (1U) • 33.15” x 17.68” x 1.73” |
