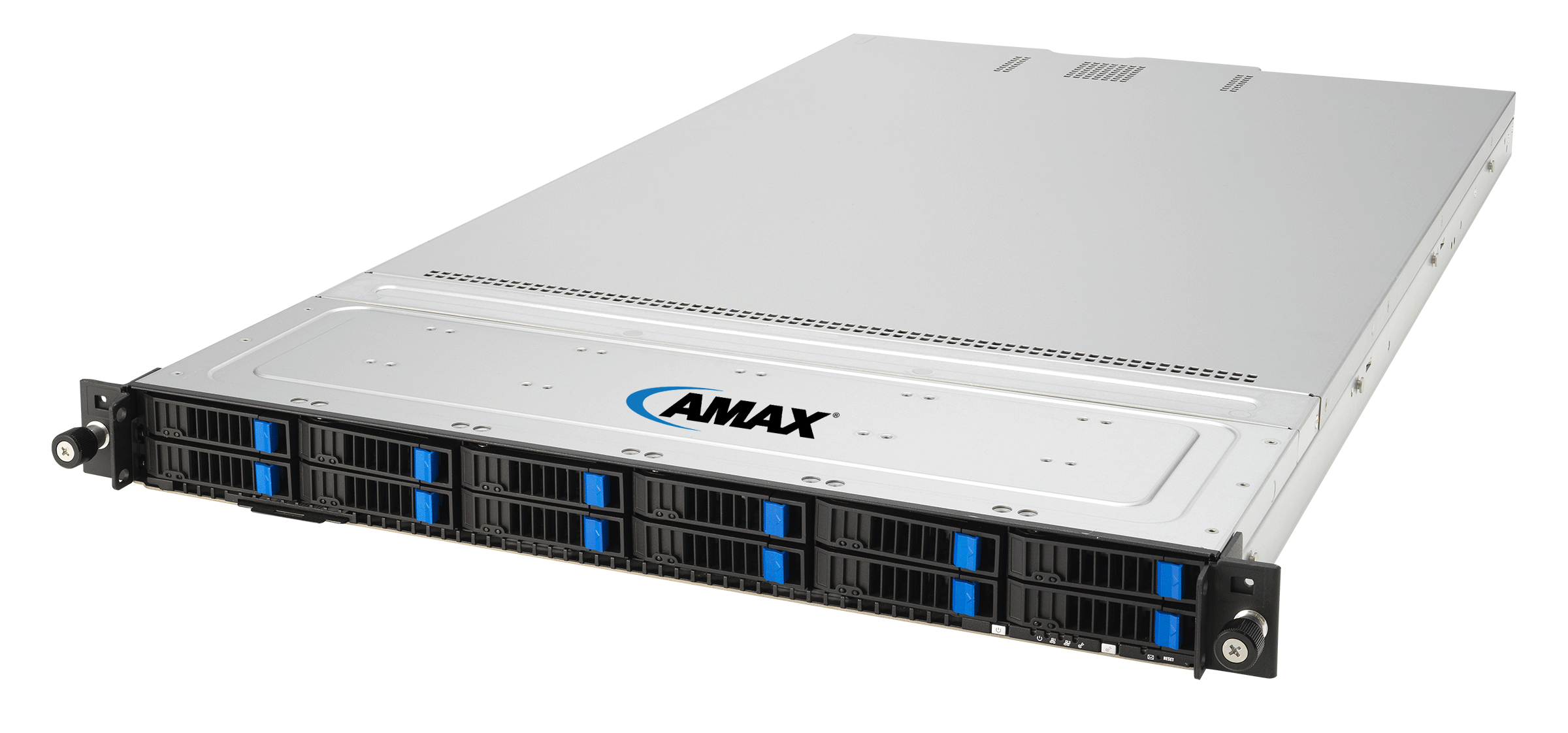

1U Dual Socket AMD EPYC 9005, 9004 Series Processor Server.

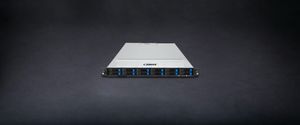

ServMax® A-1212G
- AMD EPYC 9005, 9004 Series Processors
- PCIe 5.0 Ready
- GPU and FPGA Support
- Enhanced Security
Specifications
| Specifications | Details |
|---|---|
| Processor Support | - 2 x Socket SP5 (LGA 6096) - AMD EPYC™ 9005, 9004 Series Processors (up to 400W) - 5th/4th Generation AMD EPYC Processors |
| Core Logic | - Integrated I/O – No Chipset |
| Memory | - Total Slots: 24 (12 channel per CPU, 1 DIMM per CPU) - Capacity: Maximum 6144GB - Memory Type: DDR5 6000/4800/4400 RDIMM/ 3DS RDIMM - Memory Size: 128GB, 64GB, 32GB RDIMM, 128GB, 64GB, 32GB 3DS RDIMM |
| Expansion Slots | - 3 x Expansion slots + 1 x Internal PIKE slot - 1 x PCIe Gen5 x16 (FHFL) - 1 x PCIe Gen5 x16 or OCP3.0 (FHFL) - 1 x PCIe Gen5 x16 (LP) - 1 x PCIe Gen4 x8 (LP, internal) |
| Disk Controller | - SATA Controller: 8 x SATA 6Gb/s ports, 2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link) - SAS Controller: Optional kits: - Broadcom HBA CARD 9500-16i - Broadcom MegaRAID 9540-8i - Broadcom MegaRAID 9560-16i |
| Storage Bays | - 12 x 2.5” Hot-Swap Drive Bays up to 12 x NVMe/SATA/SAS - 2 x M.2 (Up to 2280 from CPU1) RAID card is required to support SAS hard drives |
| Networking | - LAN: - 1 x Quad Port Intel I350-AM4 1G LAN Controller or - 1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller or None - 1 x Management Port |
| Graphic | - VGA: Aspeed AST2600 64MB |
| Auxiliary Storage Device Bay | - 1 x External ODD (optional) |
| Front I/O Ports | - 2 x USB 3.2 Gen 1 ports - 1 x VGA port |
| Rear I/O Ports | - 2 x USB 3.1 Gen1 ports, 1 x VGA port, 1 x RJ-45 Mgmt LAN port - 2 x 10G or 4 x 1G RJ-45 GbE LAN port (Optional), 1 x OCP3.0 port (Optional) |
| Switch/LED | - Front Switch/LED: - 1 x Power Switch (w/ LED), 1 x Reset Switch, 1 x Location Switch (w/ LED) - 1 x HDD Access LED, 1 x Message LED, LAN 1-4 LED (on NIC module) - Rear Switch/LED: - 1 x Port 80 LED (Q-Code), 1 x Power Switch (w/ LED), 1 x Location LED (w/ LED) - 1 x Message LED |
| OS Support | - Windows® Server 2019 - RedHat® Enterprise Linux, SuSE® Linux Enterprise Server - CentOS, Ubuntu, Vmware |
| Management Solution | - Software: AMAX Control Center (Classic) - On-Board AB11-iKVM for KVM-over-IP |
| Power Supply | - 1+1 Redundant 2600W/1600W 80 PLUS Titanium power supply - 1+1 Redundant 2000W/1600W 80 PLUS Platinum power supply |
| Environment | - Operation temperature: 10°C ~ 35°C - Non-operation temperature: -40°C ~ 60°C - Non-operation humidity: 20% ~ 90% (Non condensing) |
| Dimension | - 842.5mm x 449mm x 43.85mm / 33.17” x 17.68” x 1.73” (1U) |
