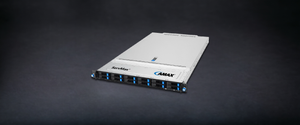

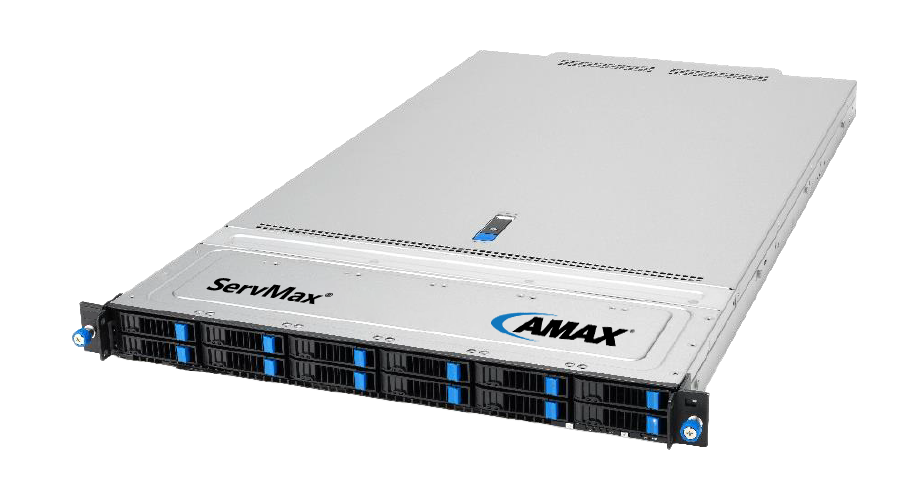

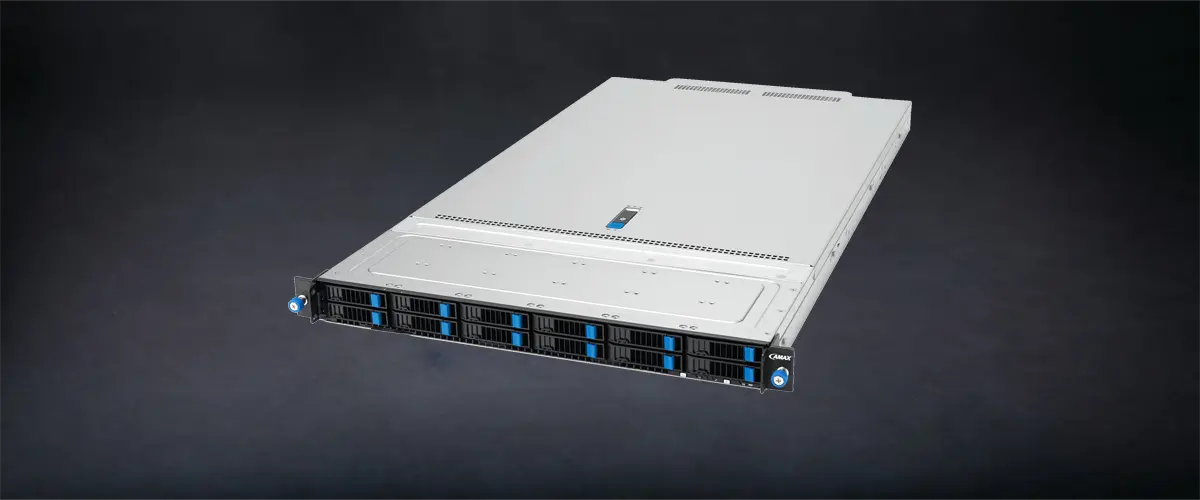

1U Dual Socket AMD EPYC 9005 Series Processors Server.

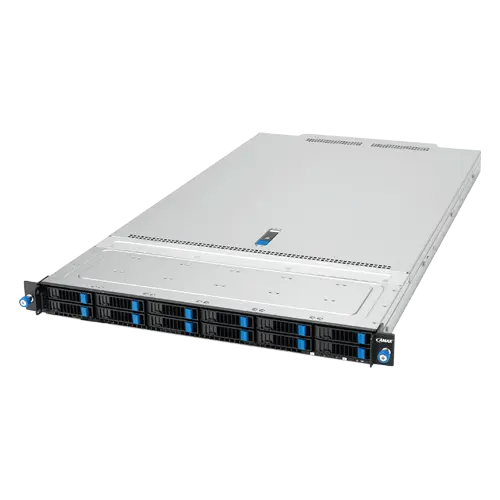

ServMax® A-1212T
- Powered by dual AMD 9005 processors, with DDR5
RDIMM up to 6000MHz 1DPC - CPU maximum TDP up to 500W
- Up to 4 expansion Gen5 slots
Specifications
| Specifications | |
|---|---|
| Processor Support | • 2 x AMD 9005 processors (Up to TDP 500W) • *TDP support by configuration |
| Core Logic | • (INTEGRATED I/O – NO CHIPSET) |
| Memory | Total Slots: • 24x DDR5 DIMM slots, up to 6000MHz (1DPC) Capacity: • (12-channel per CPU, 12 DIMM per CPU) Memory Type: • Maximum up to 3TB Memory Size: • DDR5 6400/5600 RDIMM 128GB, 96GB, 64GB |
| Expansion Slots | Total PCI/PCI-X/PCI-E/PIKE Slots: • Up to 4 PCIe slots Slot Type: • 2 x PCIE Gen5 x16 link (FHHL) • 2 x OCP 3.0 slot |
| Disk Controller | SATA Controller: • 2 x DIMM.2 Gen3 x4 (22110, 2280, 2260) Optional Kits: • AMAX PIKE II 3008-8i/3108-8i • Broadcom HBA CARD 9500-16I • Broadcom MegaRAID 9540-8i • Broadcom MegaRAID 9560-16i • Broadcom MegaRAID 9670W-24i • Broadcom MegaRAID 9670W-16i SAS Controller: Optional Kits: • AMAX PIKE II 3008-8i/3108-8i • Broadcom HBA CARD 9500-16I • Broadcom MegaRAID 9540-8i • Broadcom MegaRAID 9560-16i • Broadcom MegaRAID 9670W-24i • Broadcom MegaRAID 9670W-16i |
| Storage Bays | I = Internal: • 4 x 3.5” hot-swap bays • 12 x 2.5” hot-swap bays A or S will be hot-swappable: • Support up to 4 x NVMe/SATA/SAS for 3.5” bays • Support up to 12 x NVMe/SATA/SAS for 2.5” bays *HBA/RAID card is required to support SAS hard drives |
| Networking | LAN: • 1 x Management Port |
| Graphic | • VGA: Aspeed AST2600 64MB |
| Front I/O Ports | • 2 x USB 3.2 Gen1 ports |
| Rear I/O Ports | • 2 x USB 3.2 Gen1 ports • 1 x Mini-DP port • 1 x RJ-45 Mgmt. LAN port • 1 x Type C port |
| Switch/LED | Rear Switch/LED: • N/A Front Switch/LED: • 1 x Power switch/LED • 1 x Location switch/LED • 1 x Reset switch • 1 x Message LED |
| Management Solution | • Software: AMAX Control Center (Classic) • Out of Band Remote Management: On-Board ASM12-iKVM for KVM-over-IP |
| Power Supply | (Following different configuration by region): • 1+1 Redundant 80 PLUS 2000W/2700W/3200W Titanium/Platinum PSU |
| Environment | • Operating temperature: 10°C ~ 35°C • Non-operating temperature: -40°C ~ 70°C • Non-operating humidity: 20% ~ 90% (Non-condensing) |
| Dimensions | • 1U, 449 (W) x 43.85 (H) x 800 (D) mm • 17.68 (W) x 1.73 (H) x 31.5 (D) inches |
