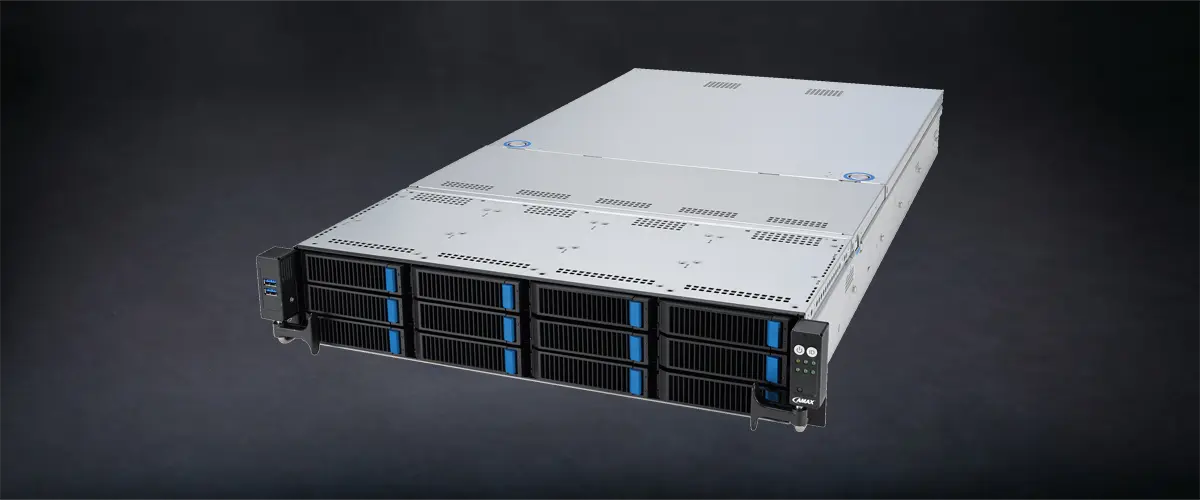

2U Single Socket AMD EPYC 9005 Series Processor Server.

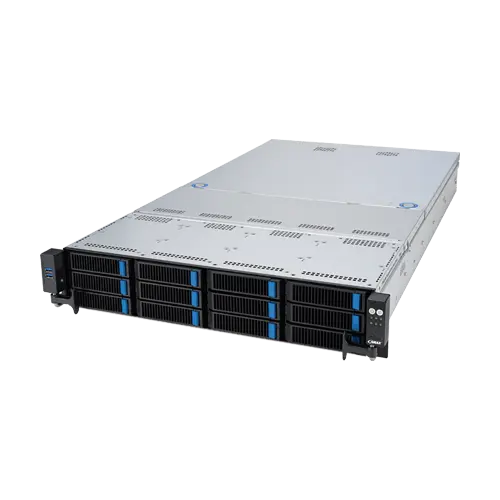

ServMax® A-2124T
- 1 x AMD EPYC 9005 Series Processor
- 24*DDR5 DIMM up to 5200Mhz
- PCIe Gen5 slots
- Max 2x DW GPU cards supported
*24Nvme SKU can’t support GPU - Rack-optimized Design
Specifications
| Specifications | |
|---|---|
| Processor Support | • 1 x Socket SP5 (LGA 6096) • Supports AMD EPYC™ 9005 series processors or AMD EPYC™ 9004 series processors, up to 360W, with AMD 3D V-Cache technology |
| Core Logic | • System on Chip (SOC) |
| Memory | Total Slots: • 24 12-channel, 2 DIMM per channel Capacity: • Maximum up to 2,304GB Memory Type: • AMD EPYC™ 9005 series processors • DDR5 5600 RDIMM • 2DPC (1 of 2) up to 5200 • 2DPC (2 of 2, 1R+1R) up to 4400 • 2DPC (2 of 2, 2R+2R) up to 4000 Memory Size: • 96GB, 64GB, 32GB, 16GB (RDIMM) AMD EPYC™ 9004 series processors: • DDR5 4800 RDIMM • 2DPC (1 of 2) up to 4800 • 2DPC (2 of 2, 1R+1R) up to 4000 • 2DPC (2 of 2, 2R+2R) up to 3600 |
| Expansion Slots | Total PCI Slots: • Up to 5 PCIe Gen5 slots + 1 OCP3.0 Slot Type: • 2 x PCIe x16 slot (Gen5 x16 link, FHFL) or dual-slot GPU cards • 4 x PCIe x16 slot (Gen5 x8 link, FHFL)* • 1 x PCIe x16 slot (Gen5 x8 link, LP) • 1 x OCP 3.0 Mezzanine (Gen5 x16 link) *Support NOT available on 24 NVMe SKU |
| Disk Controller | • SATA Controller: CPU Integrated SAS Controller: Optional kits: • Broadcom MegaRAID 9560-16I • AMAX PIKE II 3008 8-port SAS HBA card |
| Storage Bays | • 24 x 2.5” hot-swap drive bays - (24 x U.2/U.3 NVMe or 16 x U.2/U.3 NVMe + 8 x SATA/SAS or 12 x U.2/U.3 NVMe + 12 x SATA/SAS or 8 x U.2/U.3 NVMe + 16 x SATA/SAS) • 2 x 2.5” hot-swap drive bays (Rear-bay support SATAIII) • 2 x M.2 socket (Gen4 x4 link or SATA mode, up to 22110 module) |
| Networking | LAN: • 1 x Dual Port Intel I350-AM2 Gigabit LAN Controller • 1 x Dedicated Management port |
| Graphic | • VGA: Aspeed AST2600 64MB |
| Front I/O Ports | • 2 x USB 3.2 Gen1 ports |
| Rear I/O Ports | • 2 x USB 3.2 Gen1 ports • 1 x VGA port • 2 x RJ-45 GbE LAN ports |
| Switch/LED | Front: • 1 x Power Switch (w/LED) • 1 x Reset Switch • 1 x Location Switch (w/LED) • 1 x HDD Access LED • 1 x Message LED • LAN 1-2 LED Rear: • 1 x Port80 LED (Q-Code) • 1 x Power Switch w/LED • 1 x Location Switch w/LED • 1 x Message LED |
| Management Solution | • Software: AMAX Control Center (Classic) • Out of Band Remote Management: On-Board AB11-iKVM for KVM-over-IP |
| Power Supply | (Following different configuration by region): • 1+1 Redundant 2000W/1600W 80 PLUS Titanium Power Supply • 1+1 Redundant 1200W 80 PLUS Platinum Power Supply |
| Environment | • Operating temperature: 10°C ~ 35°C • Non-operating temperature: -40°C ~ 70°C • Non-operating humidity: 20% ~ 90% (Non-condensing) |
| Dimensions | • 840mm x 449mm x 88.1mm (2U) • 33.07” x 17.68” x 3.47” |
