2U Dual Socket AMD EPYC 9005, 9004 Series Processor Server.

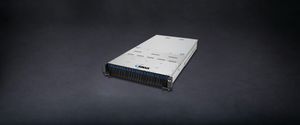

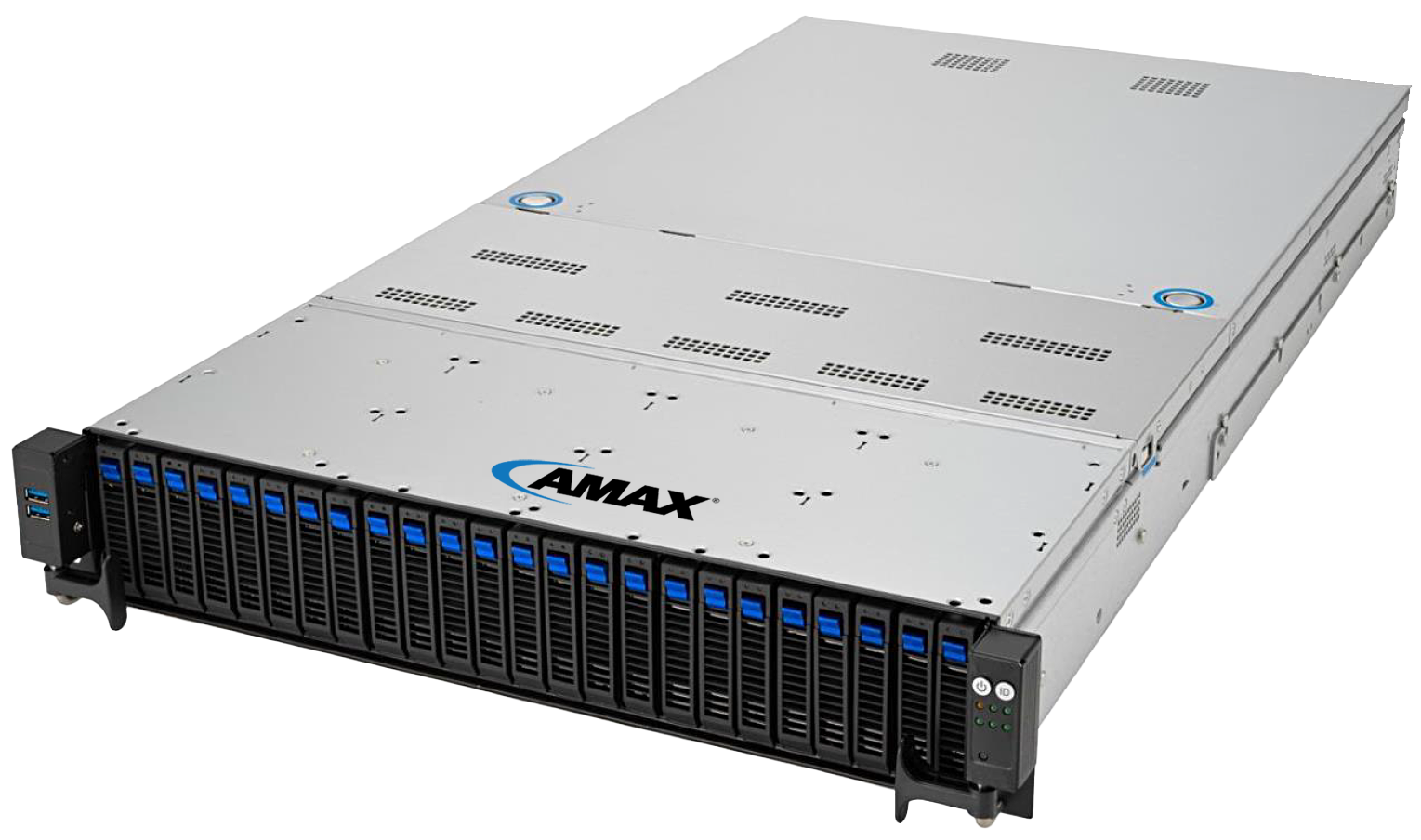

ServMax® A-2224G
- AMD EPYC 9005, 9004 Series Processors
- PCIe 5.0 Ready
- GPU and FPGA Support
- Enhanced Security
Specifications
| Specifications | Details |
|---|---|
| Processor Support | - 2 x Socket SP5 (LGA 6096) - AMD EPYC™ 9005, 9004 Series Processors (up to 400W) - 5th/4th Generation AMD EPYC Processors |
| Core Logic | - (INTEGRATED I/O – NO CHIPSET) |
| Memory | - Total Slots: 24 (12 channel per CPU, 1 DIMM per CPU) - Capacity: Maximum 6144GB - Memory Type: DDR5 4800/4400 RDIMM/ 3DS RDIMM - Memory Size: 128GB, 64GB, 32GBRDIMM, 128GB, 64GB, 32GB 3DS RDIMM |
| Expansion Slots | - Total PCI/PCI-X/PCI-E/PIKE Slots: 9 x Expansion slots - Up to 9 PCIe Gen5 slots - 6 x PCIe Gen5 x8 or 3 x PCIe Gen5 x16(FHFL) - 2 x PCIe Gen5 x8 or 1 x PCIe Gen5 x16 or 1 x OCP3.0 (FHFL) - 1 x PCIe Gen5 x16 (LPHL) *GPU SKU do not support OCP3.0 |
| Disk Controller | SATA Controller: - 8 x SATA 6Gb/s ports - 2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link) SAS Controller: - Broadcom HBA CARD 9500-16i - Broadcom MegaRAID 9540-8i / 9560-16i |
| Storage Bays | - 24 x 2.5” Hot-Swap Drive Bays - Support up to 16 x NVMe + 8 x NVMe/SATA/SAS* *RAID card is required to support SAS hard drives |
| Networking | - LAN: - 1 x Quad Port Intel I350-AM4 1G LAN Controller or - 1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller or None - 1 x Management Port |
| Graphic | - VGA: Aspeed AST2600 64MB |
| Auxiliary Storage Device Bay | - 1 x External ODD (optional) |
| Front I/O Ports | - 2 x USB 3.2 Gen1 ports |
| Rear I/O Ports | - 2 x USB 3.1 Gen1 ports, 1 x VGA port, 1 x RJ-45 Mgmt LAN port - 2 x 10G or 4 x 1G RJ-45 GbE LAN port (Optional), 1 x OCP3.0port (Optional) |
| Switch/LED | Front Switch/LED: - 1 x Power Switch (w/ LED), 1 x Reset Switch, 1 x Location Switch (w/ LED), 1 x HDD Access LED, 1 x Message LED, LAN 1-4 LED (on NIC module) Rear Switch/LED: - 1 x Port 80 LED (Q-Code), 1 x Power Switch (w/ LED), 1 x Location LED (w/ LED) - 1 x Message LED |
| Management Solution | - Software: AMAX Control Center (Classic) - On-Board AB11-iKVM for KVM-over-IP |
| Power Supply | - 1+1 Redundant 2000W/1600W 80 PLUS Platinum Power Supply - 1+1 Redundant 2600W/1600W 80 PLUS Titanium Power Supply |
| Environment | - Operation temperature: 10°C ~ 35°C - Non-operation temperature: -40°C~ 60°C - Non-operation humidity: 20% ~ 90% (Non condensing) |
| Dimension | - 840mm x 449mm x 88.1mm / 33.07” x 17.68” x 3.47” (2U) |
