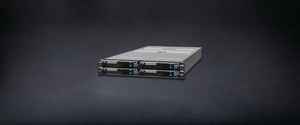

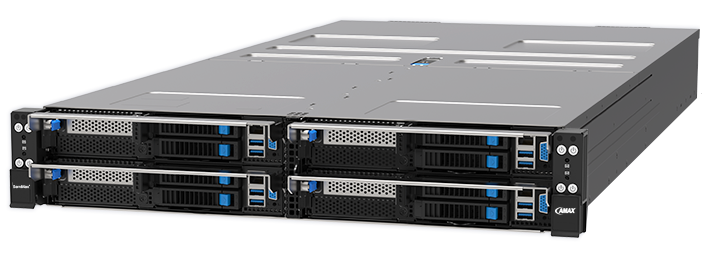

2U 4 Node Single Socket AMD EPYC 9005 Series Processors Server.
ServMax® A-24408T
- Powered by single AMD next Gen processors, with DDR5
RDIMM up to 6000MHz 1DPC - CXL memory expandability achieving high memory capacity
(12+8 DIMM per node) & speed (1DPC 6000 MTS/2DPC 4400
MTS) - Achieving greater flexibility and versatility with front access
design - Effort-less ergonomic handle and toolless bracket design for easy
maintenance
Specifications
| Specifications | |
|---|---|
| Processor Support | Per Node: • 1 x AMD EPYC 9005 Processors (Up to TDP 400W) |
| Core Logic | • (INTEGRATED I/O – NO CHIPSET) |
| Memory | Total Slots Per Node: • 12x DDR5 up to 6000 MHz (12-channel per CPU, 12 DIMM per CPU) • CXL memory module to expand 4 or 8 DIMMs 2DPC (DDR5 up to 4400 MHz) • DDR5 6400/5600 RDIMM 128GB, 96GB, 64GB |
| Expansion Slots | Total PCI/PCI-X/PCI-E/PIKE Slots Per Node: • 1 x PCIe Gen5 x16 link (HH, HL) • 1 x OCP 3.0 |
| Storage Bays | I = internal: • 8 x 2.5” Hot-swap Storage Bays A or S will be hot-swappable: • 8 x SATA/SAS*/NVMe supported • *SAS support with additional RAID card, 2 x M.2 PCIe Gen5 x4 link, up to 2280 |
| Networking | LAN Per Node: • 1 x Management Port |
| Graphic | • VGA: Aspeed AST2600 64MB |
| Front I/O Ports | Per Node: • 2 x USB 3.1 Ports • 1 x VGA Port • 1 x RJ-45 Management Port |
| Rear I/O Ports | Per Node: • 1 x Debug port |
| Switch/LED | Per Node (Front): • 1 x Power Switch/LED • 1 x Location Switch/LED • 1 x BMC Indication LED • 1 x Message LED |
| Management Solution | • Software: AMAX Control Center (Classic) • Out of Band Remote Management: On-Board AB12-iKVM for KVM-over-IP |
| Power Supply | (Following different configuration by region): • 2+spare Redundant 3200W 80 PLUS Titanium Power Supply • 1+1 Redundant 3600W 80 PLUS Titanium Power Supply |
| Environment | • Operation temperature: 10°C ~ 35°C • Non operation temperature: -40°C ~ 70°C • Non operation humidity: 20% ~ 90% (Non condensing) |
| Dimensions | • 448 (W) x 87.3 (H) x 900(D) mm (2U) • 17.64 (W) x 3.44 (H) x 35.4 (D) inches |
