2U 4 Node Dual Socket AMD EPYC 9005, 9004 Series Processor Server.

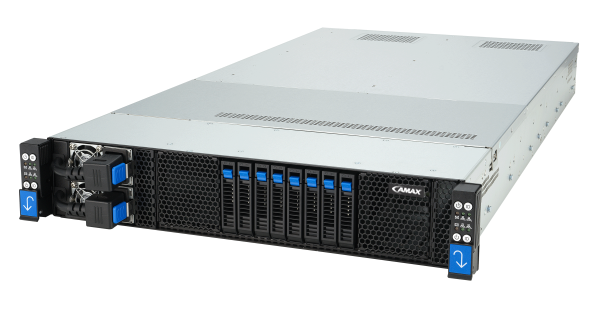

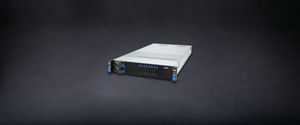

ServMax® A-24808G
- AMD EPYC 9005, 9004 Series Processors
- PCIe 5.0 Ready
- Maximum memory bandwidth
- Liquid Cooling Solutions
- Enhanced Security
Specifications
| Specifications | Details |
|---|---|
| Processor Support | - Per node: 2 x Socket SP5 (LGA 6096) - AMD EPYC™ 9005, 9004 Series Processors (up to 400W) - 5th/4th Generation AMD EPYC Processors |
| Core Logic | - System on Chip (SoC) |
| Memory | - Total Slots: Per node: 24 x DIMM slots - Capacity: Maximum up to 6144 GB - Memory Type: DDR5 4800/4400 RDIMM/ 3DS RDIMM - Memory Size: 64GB, 32GB (RDIMM), 64GB, 32GB (RDIMM3DS) |
| Expansion Slots | - Total PCI/PCI-X/PCI-E/PIKE Slots: Per node: 2 x Expansion slots - Slot Type: 2 x PCIe Gen5 x16, LP (CPU1) |
| Disk Controller | - SATA Controller: Per node: Support RAID 0, 1 - Optional Broadcom SAS3008 12G Controller - SAS Controller: The Same as SATA Controller |
| Storage Bays | - 8 x 2.5” hot-swap drive bays (NVMe/SATA/SAS*) - Per node: 2 x M.2 (Up to 22110) (Support PCIeM.2) *SATA/SAS support from optional CB board |
| Networking | - LAN: Per node: 2 x 10GbE LAN port, 1 x Management Port |
| Graphic | - VGA: Aspeed AST2600 64MB |
| Front I/O Ports | - N/A |
| Rear I/O Ports | - Per node: - 2 x USB 3.2 Gen1ports - 1 x VGA port - 1 x Mini – DP port - 1 x Management port - 2 x 10GbE LAN port |
| Switch/LED | - Per node: - Rear Switch/LED: 1 x Power Switch/LED, 1 x Q-Code/Port 80LED - Front Switch/LED: 1 x Power Switch/LED, 1 x Location Switch/LED, 1 x Message LED, 2 x LAN LED |
| OS Support | - Windows® Server - RedHat® Enterprise Linux, SuSE® Linux Enterprise Server - CentOS, Ubuntu, Vmware |
| Management Solution | - Software: AMAX Control Center (Classic) - Out of Band Remote Management: On-Board AB11-iKVM for KVM-over-IP |
| Power Supply | - 1+1 Redundant 2600W 80 PLUS Titanium Power Supply - 1+1 Redundant 3200W 80 PLUS Titanium Power Supply |
| Environment | - Operation temperature: 10°C ~ 35°C - Non operation temperature: -40°C~ 60°C - Non operation humidity: 20% ~ 90% (Non condensing) |
| Dimension | - 847mm x 444mm x 87.3mm (2U) - 33.35” x 17.48” x 3.43” |
