ServMax® X-2200E

ServMax® X-2200E
Table of Contents
  1. Specifications
2U 2-Socket 4th/5th Gen Intel® Xeon® Scalable processor General Purpose Server.

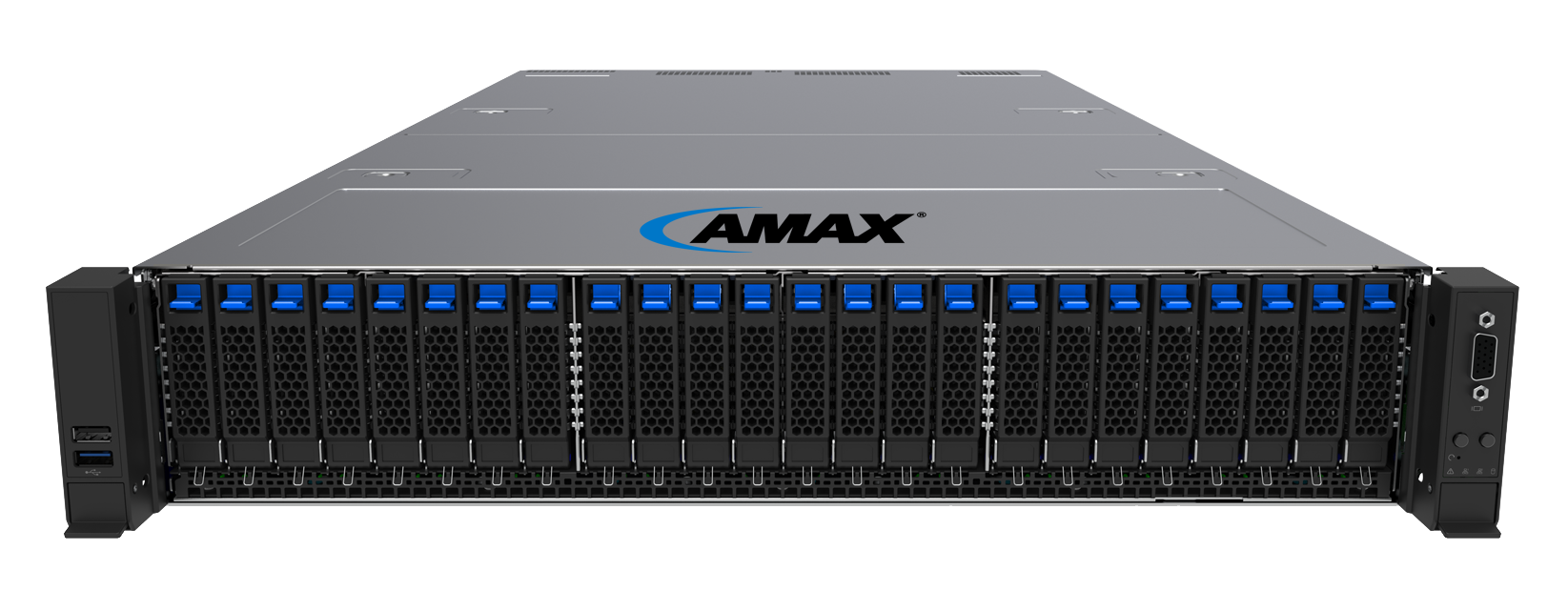

ServMax® X-2200E

  • Versatile servers suitable for a variety of applications, satisfying
    multiple purposes
  • 2-Socket 4th/5th Gen Intel® Xeon® platform, CPU Core Count and
    TDP designed for Maximum Frequency Performance
  • GPU support: 2 x Dual-Slot GPU cards (up to 300W) for AI Deep
    Learning
  • Support Ultra-fast All-Flash (PCIe5.0) or Hybrid Storage (SSD +
    HDD) Configurations
  • Built-in Hardware Security: support TPM2.0 & Optional for
    Platform Firmware Resilience
Download Datasheet

Specifications

Category Details
Form Factor • 2U
Processor • Number of Processors: 2
• Processor Type: 5th/4th Gen Intel® Xeon® Scalable Processors
• Max. TDP Support: 350W
GPU • 2 x Dual-Slot PCIe GPUs (up to 300W)
Memory • Total Slots: 32
• Memory Type:
– 1DPC: DDR5 RDIMM up to 6400 MT/s
– 2DPC: DDR5 RDIMM up to 5200 MT/s
• DIMM Capacity (GB per DIMM):
– 32GB, 64GB, 128GB
Expansion Slots • SKU -#1:
– 1 x OCP 3.0 NIC
– 2 x PCIe5.0 x16, FHFL
– 3 x PCIe5.0 x8, FHFL
– 2 x PCIe5.0 x8, HHHL
Storage Bays • SKU -#1:
– 8 x 3.5” HDD + 2 x 2.5” SSD
• SKU -#2:
– 24 x U.2 NVMe SSD
• SKU -#3:
– 16 x 2.5” SATA/SAS + 8 x U.2 NVMe SSD
Onboard Storage • 1 x M.2 SSD 2280/22110
Management • Aspeed® AST2600 management controller
Security • 1 x TPM 2.0
• 1 x PFR 3.0
Networking Interface • 1 x OCP 3.0 NIC
• 1 x RJ45 dedicated IPMI LAN
• 1 x RJ45 1GbE
Front I/O Ports • 2 x USB 2.0
• 1 x VGA
• 1 x Power button
• 1 x ID button
Rear I/O Ports • 2 x USB 3.2 Gen1
• 1 x VGA
OS Support • Windows Server 2022
• RHEL 9.1
• Ubuntu 22.04 LTS
Power Supply • 1+1 2000W CRPS
Fans • 6 x 6056 Fans
Operating Environment • Operating temperature: 5°C to 35°C
• Operating humidity: 10%-90% (non-condensing)
• Non-operating temperature: -40°C to 70°C
• Non-operating humidity: -55%-85% (non-condensing)
Chassis Dimension (W x H x D) • 17.2” x 3.4” x 30.3” / 438mm x 87mm x 770.2mm
