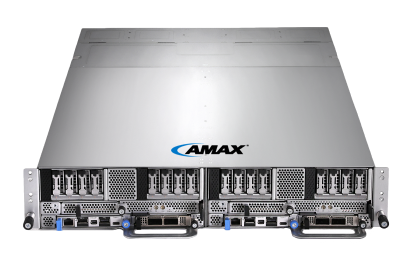

2U 2-Node 1-Socket Intel® Xeon® 6 Series Processors Compute/GPU
Multi-Node Server.
ServMax® X-22200B
- Supports 2 x Intel® Xeon® 6700E/6700P/6500P processors
- Offers two different Node design: Compute Node and GPU
Node - Provides flexible node combination to meet various
workload demand - Tool-less design for drive trays, Fan module, PSU
- Big Thumb Screw for easily detaching MB from sled
Specifications
| Category | Details |
|---|---|
| Form Factor | • 2U 2-Node |
| Processor | • Number of Processors: 1 • Processor Type: Intel® Xeon® 6 6700E/6700P/6500P Processors • Max. TDP Support: – Up to 350W w/ 2U heatsink – Up to 205W w/ 1U heatsink |
| GPU | • 1 x Dual-Slot PCIe GPU (up to 350W) |
| Memory | • Total Slots: 16 • Memory Type: – 1DPC: DDR5 RDIMM up to 6400 MT/s – 2DPC: DDR5 RDIMM up to 5200 MT/s • DIMM Capacity (GB per DIMM): 32GB, 64GB, 128GB |
| Expansion Slots | • SKU -#1 (GPU Node SKU): – 2 x PCIe5.0 x16 – 1 x OCP3.0 NIC • SKU -#2 (Compute Node SKU): – 1 x OCP3.0 NIC |
| Storage Bays | • SKU -#1 (GPU Node SKU): – 4 x E.1S SSD • SKU -#2 (Compute Node SKU): – 8 x E.1S SSD |
| Onboard Storage | • 2 x M.2 SSD 2280/22110 |
| Security | • 1 x TPM 2.0 • 1 x PROT (Platform Root Of Trust), PFR4.0 complied |
| Networking Interface | • 1 x NIC installed in OCP 3.0 slot |
| Management | • Aspeed® AST2600 management controller |
| Front I/O Ports | • 1 x IPMI RJ-45 • 1 x USB 3.2 Gen 1x1 port w/o USB2.0 support, the Speed is 5Gbps • 1 x USB 2.0 port • 1 x Type-C-USB (UART) • 1 x mini-DP • 1 x Power button/LED, Power on with Green color and Power off with Amber color • 1 x BMC Status LED with Amber color LED • 1 x UID button with Blue color LED |
| Rear I/O Ports | • 1 x Status LED |
| OS Support | • RedHat RHEL 9.1 or later • Ubuntu 22.04.2 LTS or later • Windows Server 2022 |
| Power Supply | • 1+1 2400W CRPS |
| Fans | • 4 x 8056 Fans |
| Operating Environment | • Ambient operating temperature range: 10°C to +35 °C • Ambient Non-operating temperature: -40°C to +70 °C • Operating relative humidity: 10% to 80%, noncondensing • Non-operating relative humidity: up to 90%, noncondensing |
| Chassis Dimension (W x H x D) | • 17.6” x 3.4” x 31.5” / 447mm x 86.8mm x 800mm |
